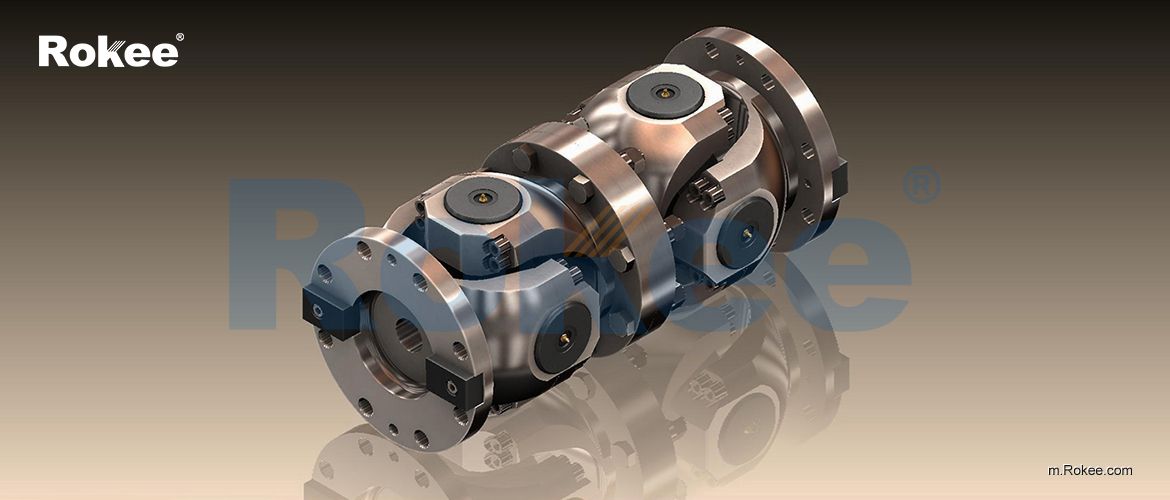

SWP-C Universal Coupling

SWP-C Universal Coupling adopts integrated fork head layout. Similar to the use of the SWC universal coupling, SWP-C Cardan Shaft is mainly used in the field of heavy-duty large equipment, with a rotary diameter of up to 1200mm.

Model	Rotary Diameter D mm	Nominal Torque T_n kN ·m	Pulsating Fatigue Torque T_p kN ·m	Alternating Fatigue Torque T_f kN ·m	Axis Angle β(°)	Size / mm									Rotational Inertia kg ·m²	Quality kg

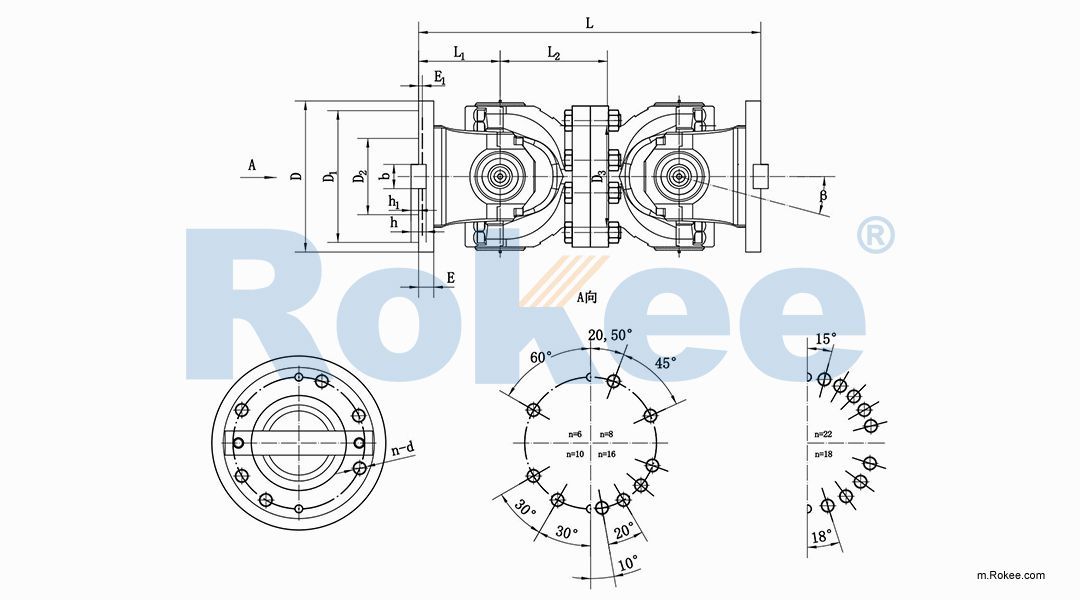

Model	Rotary Diameter D mm	Nominal Torque T_n kN ·m	Pulsating Fatigue Torque T_p kN ·m	Alternating Fatigue Torque T_f kN ·m	Axis Angle β(°)	L	D1	D2 (H7)	E	E1	bxh	h1	L1	Nxd	Rotational Inertia kg ·m²	Quality kg
SWP160C	160	20	14	10	≤15	360	140	95	15	4	20×12	6	90	6xφ13	0.103	32
SWP180C	180	28	20	14	≤15	420	155	105	15	4	24×14	7	105	6×φ15	0.195	48
SWP200C	200	40	28	20	≤15	480	175	125	17	5	28×16	8	120	8×φ15	0.325	65
SWP225C	225	56	40	28	≤15	580	196	135	20	5	32×18	9	145	8×φ17	0.628	98
SWP250C	250	80	56	40	≤15	660	218	150	25	5	40×25	12.5	165	8xφ19	1.163	149
SWP285C	285	112	78	56	≤15	720	245	170	27	7	40×30	15	180	8xφ21	2.163	212
SWP315C	315	160	112	80	≤15	820	280	185	32	7	40×30	15	205	10xφ23	3.671	296
SWP350C	350	224	157	112	≤15	900	310	210	35	8	50×32	16	225	10×φ23	6.197	405
SWP390C	390	315	220	158	≤10	860	345	235	40	8	70×36	18	215	10×φ25	9.728	512
SWP435C	435	450	315	225	≤10	980	385	255	42	10	80×40	20	245	16xφ28	17.112	713
SWP480C	480	630	440	315	≤10	1100	425	275	47	12	90×45	22.5	275	16×φ31	27.072	940
SWP550C	550	900	630	450	≤10	1220	492	320	50	12	100×45	22.5	305	16xφ31	56.050	1475
SWP600C	600	1250	875	625	≤10	1480	544	380	55	15	90×55	27.5	370	22×φ34	95.760	2128
SWP650C	650	1600	1120	800	≤10	1620	585	390	60	15	100×60	30	405	18×φ38	144.408	2735
