SWP-B Universal Coupling

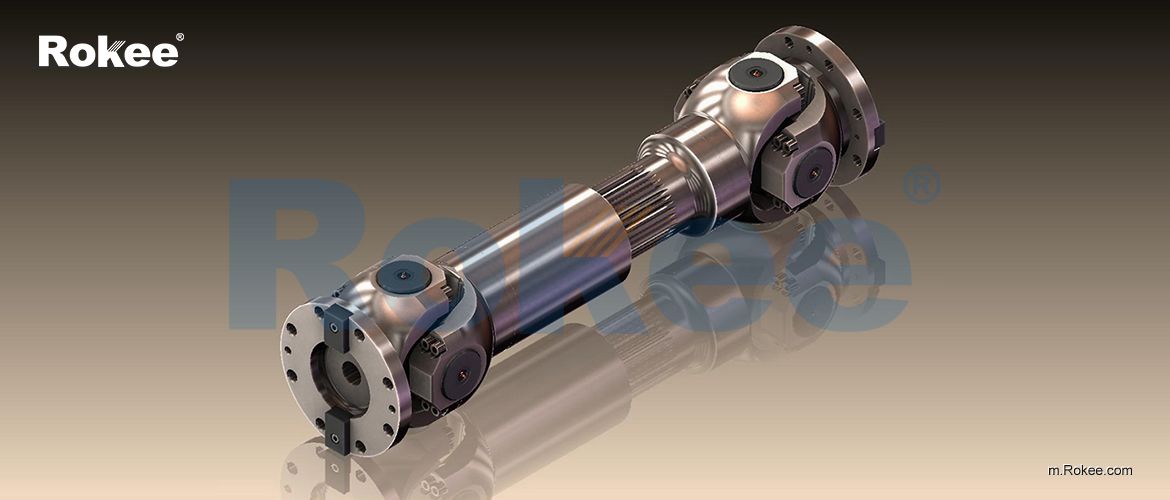

SWP-B Universal Coupling adopts integrated fork head layout. Similar to the use of the SWC universal coupling, SWP-B Cardan Shaft is mainly used in the field of heavy-duty large equipment, with a rotary diameter of up to 1200mm.

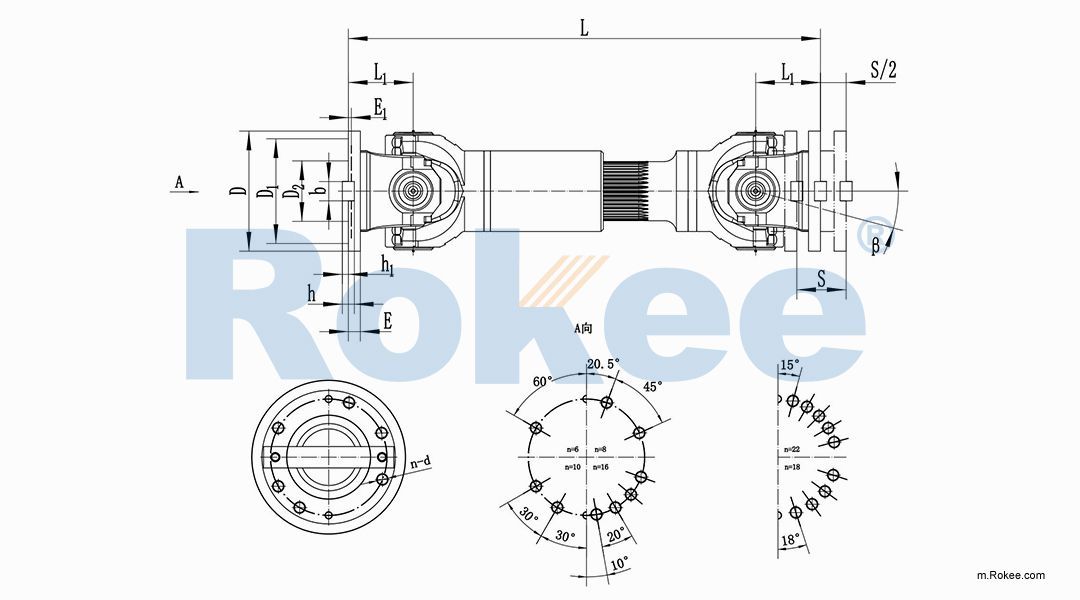

Model	Rotary Diameter D mm	Nominal Torque T_n kN ·m	Pulsating Fatigue Torque T_p kN ·m	Alternating Fatigue Torque T_f kN ·m	Axis Angle β(°)	Expansion Amount S mm	Size / mm									Rotational Inertia kg ·m²		Quality kg
							Lmin	D1	D2 (H7)	E	E1	bxh	h1	L1	Nxd	L_min	Increase	L_min mm	Increase 100mm
							Lmin	D1	D2 (H7)	E	E1	bxh	h1	L1	Nxd	mm	100mm	L_min mm	Increase 100mm
SWP160B	160	20	14	10	≤15	50	575	140	95	15	4	20×12	6	90	6×φ12	0.148	0.004	46	3.92
SWP180B	180	28	20	14	≤15	60	650	155	105	15	4	24×14	7	105	6xφ15	0.268	0.005	66	4.75
SWP200B	200	40	28	20	≤15	70	735	175	125	17	5	28×16	8	120	8xφ15	0.430	0.009	86	6.46
SWP225B	225	56	40	28	≤15	76	850	196	135	20	5	32×18	9	145	8xφ17	0.826	0.013	129	8.05
SWP250B	250	80	56	40	≤15	80	920	218	150	25	5	40×25	12.5	165	8xφ19	1.553	0.026	199	12.54
SWP285B	285	112	78	56	≤15	100	1070	245	170	27	7	40×30	15	180	8×φ21	2.856	0.043	280	15.18
SWP315B	315	160	112	80	≤15	110	1200	280	185	32	7	40×30	15	205	10xφ23	4.774	0.078	385	19.25
SWP350B	350	224	157	112	≤15	120	1330	310	210	35	8	50×32	16	225	10xφ23	7.788	0.097	509	22.75
SWP390B	390	315	220	158	≤10	120	1290	345	235	40	8	70×36	18	215	10×φ25	11.628	0.122	612	25.62
SWP435B	435	450	315	225	≤10	150	1520	385	255	4.2	10	80×40	20	245	16xφ28	22.032	0.176	918	29.12
SWP480B	480	630	440	315	≤10	180	1690	425	275	47	12	95×45	22.5	275	16xφ31	35.482	0.238	1232	35.86
SWP550B	550	900	630	450	≤10	190	1850	492	320	50	12	100×45	22.5	305	16xφ31	67.868	0.341	1786	40.33
SWP600B	600	1250	875	625	≤10	210	2480	544	380	55	15	90×55	27.5	370	22xφ34	137.115	0.467	3047	47.65
SWP650B	650	1600	1120	800	≤10	230	2580	585	390	60	15	100×60	30	405	18xφ38	194.991	0.623	3693	54.48
