SWC-WH Non-telescopic Welded Universal Coupling

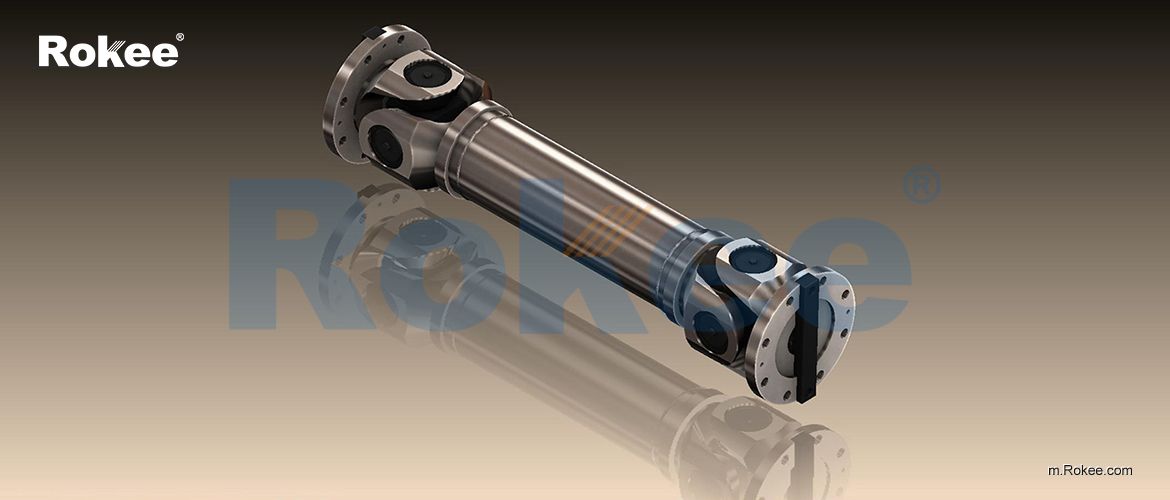

SWC-WH Universal Coupling adopts integrated fork head layout, with the rotary diameter of 1600mm and torque transmission distance of more than 30m. SWC-WH Cardan Shaft is widely used in steel rolling machinery, crane transport machinery and other heavy equipment fields.

Model	Rotary Diameter D mm	Nominal Torque T_n KN ·m	Fatigue Torque T_f KN ·m	Bearing Life Coefficient K_L	Axis Angle β (°)	Size / mm										Rotational Inertia (kg ·m²)		Quality kg
Model	Rotary Diameter D mm	Nominal Torque T_n KN ·m	Fatigue Torque T_f KN ·m	Bearing Life Coefficient K_L	Axis Angle β (°)	L_min	D₁ (js11)	D₂ (H7)	D₃	L_m	n×φd	k	t	b (h9)	g	L_min mm	Increase 100mm	L_min mm	Increase 100mm
SWC100WH	100	2.5	1.25	5.795×10^-4	≤25	243	84	57	60	55	6×φ9	7	2.5	一	一	0.004	0.0002	4.5	0.35
SWC120WH	120	5	2.5	4.641×10^-3	≤25	307	102	75	70	65	8×φ11	8	2.5	一	一	0.01	0.0004	7.7	0.55
SWC150WH	150	10	5	0.51×10^-1	≤25	350	130	90	89	80	8×φ13	10	3	一	一	0.037	0.0016	18	0.85
SWC180WH	180	22.4	11.2	0.245	≤15	480	155	105	114	110	8×φ17	17	5	24	7	0.15	0.007	48	2.8
SWC200WH	200	36	18	1.115	≤15	500	170	120	133	115	8×φ17	17	5	28	8	0.246	0.013	72	3.7
SWC225WH	225	56	28	7.812	≤15	520	196	135	152	120	8×φ17	20	5	32	9	0.365	0.023	78	4.9
SWC250WH	250	80	40	2.82×10¹	≤15	620	218	150	168	140	8×φ19	25	6	40	12.5	0.847	0.028	124	5.3
SWC285WH	285	120	58	8.28×10¹	≤15	720	245	170	194	160	8×φ21	27	7	40	15	1.756	0.051	185	6.3
SWC315WH	315	160	80	2.79×10²	≤15	805	280	185	219	180	10×φ23	32	8	40	15	2.893	0.08	262	8
SWC350WH	350	225	110	7.44×10²	≤15	875	310	210	245	194	10×φ23	35	8	50	16	4.814	0.146	349	11.5
SWC390WH	390	320	160	1.86×10³	≤15	955	345	235	267	215	10×φ25	40	8	70	18	8.406	0.222	506	15
SWC440WH	440	500	250	8.25×10³	≤15	1155	390	255	325	260	16×φ28	42	10	80	20	15.79	0.474	790	21.7
SWC490WH	490	700	350	2.154×10⁴	≤15	1205	435	275	351	270	16×φ31	47	12	90	22.5	27.78	0.690	1104	27.3
SWC550WH	550	1000	500	6.335×10⁴	≤15	1355	492	320	426	305	16×φ31	50	12	100	22.5	48.32	1.357	1526	34
