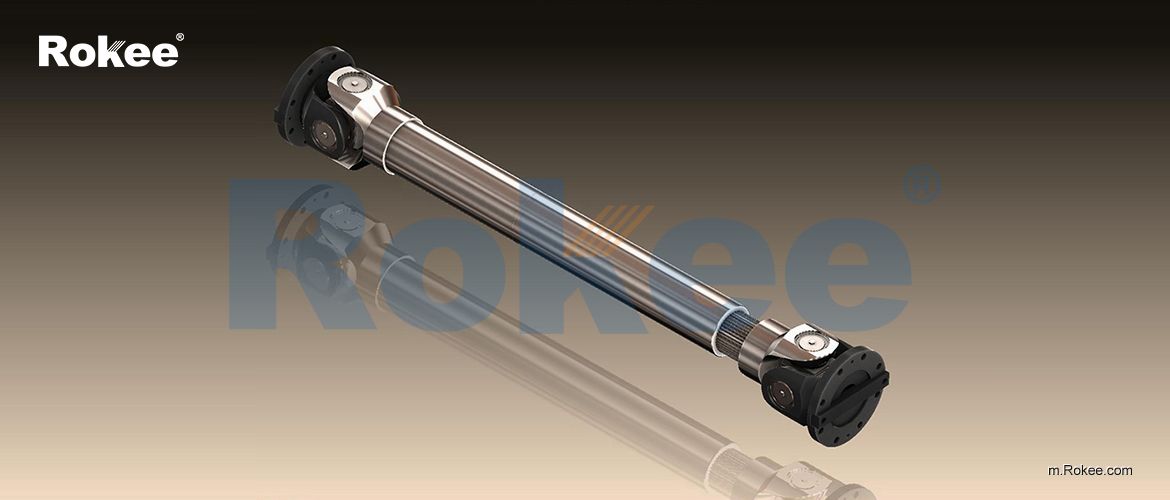

SWC-CH Long Telescopic Welded Universal Coupling

SWC-CH Universal Coupling adopts integrated fork head layout, with the rotary diameter of 1600mm and torque transmission distance of more than 30m. SWC-CH Cardan Shaft is widely used in steel rolling machinery, crane transport machinery and other heavy equipment fields.

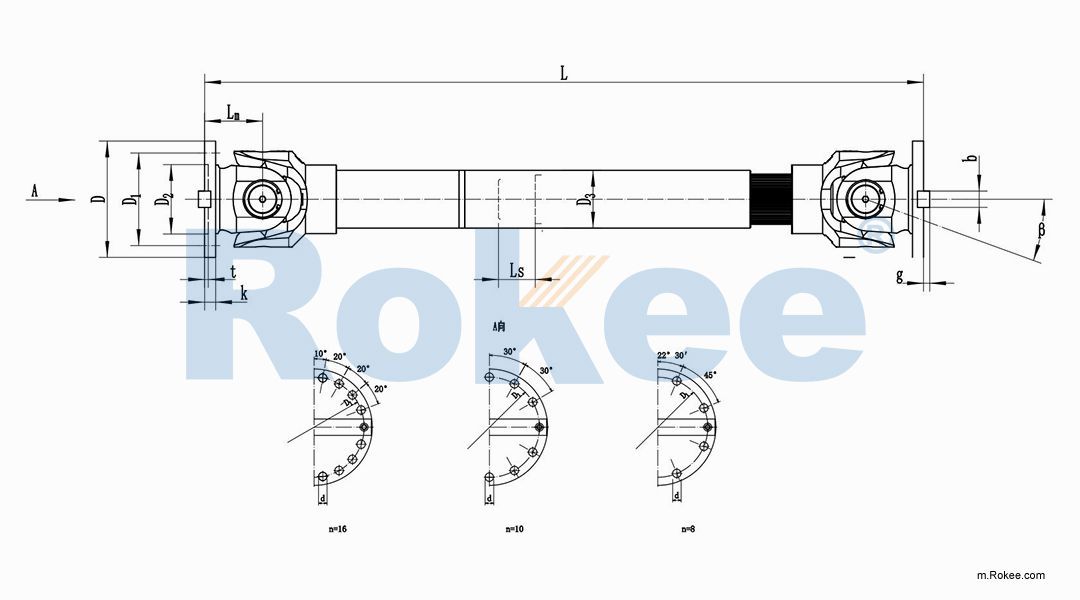

Model	Rotary Diameter D mm	Nominal Torque T_n KN ·m	Fatigue Torque T_f KN ·m	Bearing Life Coefficient K_L	Axis Angle β (°)	Expansion Amount L_s mm	Size / mm										Rotational Inertia (kg ·m2)		Quality kg
Model	Rotary Diameter D mm	Nominal Torque T_n KN ·m	Fatigue Torque T_f KN ·m	Bearing Life Coefficient K_L	Axis Angle β (°)	Expansion Amount L_s mm	L_min	D₁ (js11)	D₂ (H7)	D₃	L_m	n×φd	k	t	b (h9)	g	L_min mm	Increase 100mm	L_min mm	Increase 100mm
SWC180CH1	180	22.4	11.2	0245	≤15	200	925	155	105	114	110	8×φ17	17	5.0	24	7.0	0.181	0.007	74	2.8
SWC180CH2	180	22.4	11.2	0245	≤15	700	1425	155	105	114	110	8×φ17	17	5.0	24	7.0	0.216	0.007	104	2.8
SWC200CH1	200	36	18	1.115	≤15	200	975	170	120	133	115	8×φ17	17	5.0	38	8.0	0.328	0.013	99	3.7
SWC200CH2	200	36	18	1.115	≤15	700	1465	170	120	133	115	8×φ17	17	5.0	38	8.0	0.402	0.013	139	3.7
SWC225CH1	225	56	28	7.812	≤15	220	1020	196	135	152	120	8xφ17	20	5.0	32	9.0	0.561	0.023	132	4.9
SWC225CH2	225	56	28	7.812	≤15	700	1500	196	135	152	120	8xφ17	20	5.0	32	9.0	0.674	0.023	182	4.9
SWC250CH1	250	80	40	2.82×101	≤15	300	1215	218	150	168	140	8×φ19	25	5.0	40	12.5	1.016	0.028	190	5.3
SWC250CH2	250	80	40	2.82×101	≤15	700	1615	218	150	168	140	8×φ19	25	5.0	40	12.5	1.127	0.028	235	5.3
SWC285CH1	285	120	58	8.82×101	≤15	400	1475	245	170	194	160	8×φ21	27	7.0	40	15.0	2.156	0.051	300	6.3
SWC285CH2	285	120	58	8.82×101	≤15	800	1875	245	170	194	160	8×φ21	27	7.0	40	15.0	2.360	0.051	358	6.3
SWC315CH1	315	160	80	2.79×102	≤15	400	1600	280	185	219	180	10×φ23	32	8.0	40	15.0	3.812	0.080	434	8.0
SWC315CH2	315	160	80	2.79×102	≤15	800	2000	280	185	219	180	10×φ23	32	8.0	40	15.0	4.150	0.080	514	8.0
SWC350CH1	350	225	110	7.44×102	≤15	400	1715	310	210	245	194	10×φ23	35	8.0	50	16.0	5.926	0.146	622	11.5
SWC350CH2	350	225	110	7.44×102	≤15	800	2115	310	210	245	194	10×φ23	35	8.0	50	16.0	6.814	0.146	773	11.5
SWC390CH1	390	320	160	1.86×103	≤15	400	1845	345	235	267	215	10×φ25	40	8.0	70	18.0	12.73	0.222	817	15.0
SWC390CH2	390	320	160	1.86×103	≤15	800	2245	345	235	267	215	10×φ25	40	8.0	70	18.0	13.62	0.222	964	15.0
SWC440CH1	440	500	250	8.25×103	≤15	400	2110	390	255	325	260	15×φ28	42	10.0	80	20.0	22.54	0.474	1321	21.7
SWC440CH2	440	500	250	8.25×103	≤15	800	2510	390	255	325	260	15×φ28	42	10.0	80	20.0	24.43	0.474	1537	21.7
SWC490CH1	490	700	350	2.154×104	≤15	400	2220	435	275	351	270	16×φ31	47	12.0	90	22.5	35.21	0.690	1640	27.3
SWC490CH2	490	700	350	2.154×104	≤15	800	2620	435	275	351	270	16×φ31	47	12.0	90	22.5	37.11	0.690	1860	27.3
SWC550CH1	550	1000	500	6.335×104	≤15	400	2585	492	320	426	305	16×φ31	50	12.0	100	22.5	72.79	1.357	2585	34
SWC550CH2	550	1000	500	6.335×104	≤15	1000	3085	492	320	426	305	16×φ31	50	12.0	100	22.5	79.57	1.357	3045	34
